Blower for Wastewater Treatment Plants

A blower for wastewater treatment plants is designed to provide a stable supply of compressed air to aeration tanks, bioreactors, aerated grit chambers, and other technological zones where continuous aeration is required.

Simply put:
no air — no biology.
no biology — no treatment.

The blower generates the oxygen flow that sustains activated sludge, supports nitrification, and stabilizes organic oxidation processes.

In wastewater treatment systems, the aeration blower is not an auxiliary component.
It is the core of the biological treatment stage.

Blowers are classified by operating principle into:

• Rotary blowers
• Vortex (turbine) blowers

The choice is not about price — it is about operating conditions and process requirements.
​

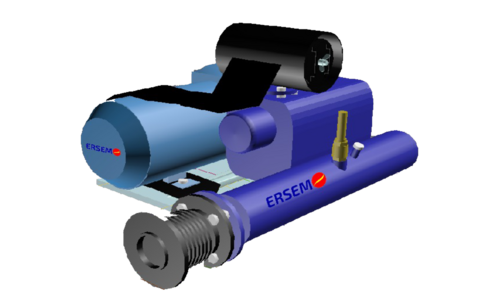

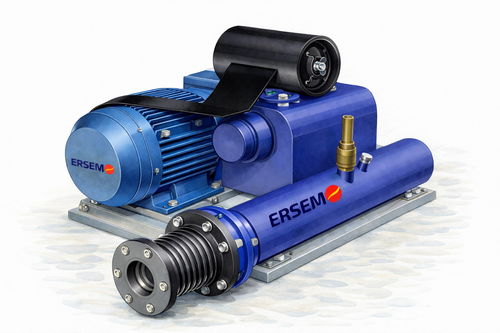

• Rotary Blower

A rotary blower consists of an electric motor and a rotor block connected via a belt drive.Inside the housing, two lobed rotors rotate synchronously in opposite directions.They create sealed volumes that move sequentially toward the outlet.This design produces a stable flow of compressed air without pulsating pressure spikes. The main advantage of rotary blowers is operational predictability and resistance to load fluctuations.

• Vortex (Turbine) Blower

A vortex blower consists of an electric motor and a turbine (impeller) block connected by a coupling.The impeller rotates with minimal clearance inside the housing, creating a high-velocity vortex flow. The air is repeatedly accelerated within the casing, building pressure.This type of industrial blower is compact and suitable for relatively low flow rates at stable pressure conditions.

• How It Works in an Aeration System

The blower supplies the working medium to a distribution manifold and then to the aeration diffusers.
Through fine-bubble or medium-bubble diffusers, compressed air enters the water, providing:

• maintenance of dissolved oxygen levels
• mixing of activated sludge
• prevention of dead zones
• stabilization of biological processes

If air supply becomes unstable, dissolved oxygen concentration drops, microorganisms begin to die, and treatment efficiency deteriorates.

Therefore, selecting a blower for an aeration tank is not simply about power.
It is about balance: air flow rate, pressure, installation depth, and system resistance.

• Compact Design

Optimized dimensions allow installation in existing wastewater treatment buildings without reconstruction.

• Reliability

The design is engineered for long-term continuous operation under demanding conditions.

• Easy Installation

Connection to the air distribution system does not require complex transitional components.

• Low Noise Level

When equipped with a soundproof enclosure, acoustic impact can be significantly reduced.

• Energy Efficiency

Modern units can be equipped with variable frequency drives (VFD) to adjust air supply according to current process demand.
